Automatic Transmission / Transaxle and Torque Converter for 2015 Jeep Renegade

2015 Jeep Renegade Change Vehicle

Categories

Browse Categories
Automatic Transmission / Transaxle and Torque Converter for 2015 Jeep Renegade #0 Automatic Transmission / Transaxle and Torque Converter for 2015 Jeep Renegade #1 Automatic Transmission / Transaxle and Torque Converter for 2015 Jeep Renegade #2

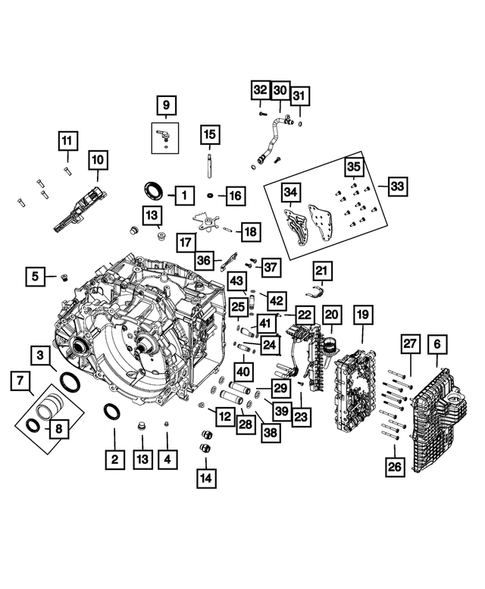

Automatic Transmission / Transaxle and Torque Converter for 2015 Jeep Renegade #0
No.
Part # / Description / Price
Price
1
Differential Seal

$25.25
$19.85
$25.25
$19.85
2
Impeller Seal

$20.20
$15.85
$20.20
$15.85
3
Differential Seal

$25.25
$19.85
$25.25
$19.85
3
Differential Seal

$24.70
$19.39
$24.70
$19.39
4
Transmission Case Plug

$6.60
$5.17
$6.60
$5.17
5
Transmission Case Plug

M14x1.50x12.00.

$9.10
$7.14
$9.10
$7.14
6
Transmission Oil Pan

Includes Gasket.

$64.60
$48.44
$64.60
$48.44
7
Stub Shaft

$24.25
$19.06
$24.25
$19.06
8
Differential Seal

$13.45
$10.55
$13.45
$10.55
9
Transmission Vent

$9.75
$7.66
$9.75
$7.66
10
Transmission Control Module 1

Generic.

$374.00
$268.80
$374.00
$268.80
11
Pan Head Screw

M8X1.25X22.00. Hose to Pump. M8x1.25x22.00. knock sensor to block. M8X1.25X22.00. Knock Sensor To Engine. M8X1.25X22.00. Pressure Line to Pump Attachment. M8X1.25X22.00. Detonation Sensor To Engine Block.

$1.25
$0.98
$1.25
$0.98
12
Hex Bolt

[m10x1.00x8.00].

$4.60
$3.60
$4.60
$3.60
13
Transmission Case Plug

[M18 x 1.5]. [m18x1.50x12.0].

$8.25
$6.48
$8.25
$6.48
14
Quick Connect Fitting

1/2 x 3/4 - 16. At Transmission.

$16.25
$12.77
$16.25
$12.77
15
Manual Lever Shaft Assembly

Manual Lever Shaft Assy

$26.85
$21.09
$26.85
$21.09
15
Manual Lever Shaft Assembly

Manual Lever Shaft Assy

$26.85
$21.09
$26.85
$21.09
16
Manual Valve Lever Seal

$4.10
$3.21
$4.10
$3.21
17
Gearshift Detent

$28.60
$22.47
$28.60
$22.47
18
Roll Pin

$7.25
$5.70
$7.25
$5.70
19
Complete Valve Body 1

With Production Number 68257277AE.

$817.00
$583.10
$817.00
$583.10
19
Complete Valve Body 1

Complete Valve Body, Remanufactured

With Production Number 68257277AE.

$817.00
$583.10
$817.00
$583.10
19
Complete Valve Body 1

With Production Number 68257277AE.

$817.00
$583.10
$817.00
$583.10
19
Complete Valve Body 1

With Production Number 68257277AE.

$817.00
$583.10
$817.00
$583.10
20
Transmission Range Sensor

$312.00
$224.40
$312.00
$224.40
21
Wiring Harness Retainer

$2.45
$1.90
$2.45
$1.90
22
Bolt

M5x12.00. M5x0.8x12.50.

$0.50
$0.39
$0.50
$0.39
23
Screw

M5x0.80x14.00.

$2.10
$1.64
$2.10
$1.64
24
O-Ring

$5.45
$4.26
$5.45
$4.26
25
O-Ring

$3.70
$2.88
$3.70
$2.88
26
6 Lobe Screw

M6X1.00X59.00. Valve Body to Transmssion. M6X1.00X59.00. Valve Body to Transmission.

$0.95
$0.72
$0.95
$0.72
27
6 Lobe Recessed Head Bolt

M6x1.00x70.00.

$1.10
$0.85
$1.10
$0.85
28
Oil Feed Tube

76.00MM, Includes O-rings.

$8.20
$6.42
$8.20
$6.42
29
Tube

72.00MM, Includes O-Rings.

$8.20
$6.42
$8.20
$6.42
30
Oil Feed Tube

X87+dmd. Includes O-Rings.

$20.50
$16.11
$20.50
$16.11
30
Oil Feed Tube

X87+dmd. Includes O-Rings.

$20.50
$16.11
$20.50
$16.11
31
O-Ring

Serviced With Tube Item 30.

$1.70
$1.31
$1.70
$1.31
32
6 Lobe Recessed Head Bolt

M6X1.00X22.00. Upper Oil Pan To Cylinder Block. M6X1.00X22.00. Upper Oil Pan To Rear Oil Seal Retainer. M6X1.00X22.00. Oil Pan To Rear Crankshaft Oil Seal Retainer.

$1.00
$0.79
$1.00
$0.79
33
Cover Kit

$10.45
$8.19
$10.45
$8.19
34
Transmission Case Gasket

$18.30
$14.34
$18.30
$14.34
34
Transmission Case Gasket

$18.30
$14.34
$18.30
$14.34
35
6 Lobe Screw

M6x1.00x15.20. M6x1.00x12.00.

$1.10
$0.85
$1.10
$0.85
36
Spring Assembly Trans Park Sprag Leaf

Spring Assy Trans Park Sprag Leaf

$11.95
$9.37
$11.95
$9.37
37
6 Lobe Screw

M6x1.00x15.20. M6x1.00x12.00.

$1.10
$0.85
$1.10
$0.85
38
O Ring

$2.10
$1.64
$2.10
$1.64
39
O Ring

$2.10
$1.64
$2.10
$1.64
40
Oil Feed Tube

51.60MM, Includes O-Rings.

$5.70
$4.45
$5.70
$4.45
41
Oil Feed Tube

Includes O-Rings. 44.40MM.

$14.75
$11.59
$14.75
$11.59
42
O-Ring

$5.45
$4.26
$5.45
$4.26
43
Oil Feed Tube

41.40MM, Includes O-Rings.

$6.00
$4.72
$6.00
$4.72
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
1
With Torque Converter Transmission Kit 1

$3,950.00
$3,522.40
$3,950.00
$3,522.40
1
With Torque Converter Transmission Kit 1

$3,950.00
$3,522.40
$3,950.00
$3,522.40
1
With Torque Converter Transmission Kit 1

$3,950.00
$3,522.40
$3,950.00
$3,522.40
2
Torque Converter Kit 1

$389.00
$279.60
$389.00
$279.60
2
Torque Converter Kit 1

$389.00
$279.60
$389.00
$279.60
3
Hex Head Header Point Screw

$4.20
$3.28
$4.20
$3.28
3
Hex Head Header Point Screw

.312-24x.44. Flexplate To Torque Converter. .312-24x.44. Driveplate To Torque Cconverter. .312-24x.44. Drive Plate to Torque Converter.

$4.20
$3.28
$4.20
$3.28
3
Hex Head Header Point Screw

.312-24x.44. Flexplate To Torque Converter. .312-24x.44. Driveplate To Torque Cconverter. .312-24x.44. Drive Plate to Torque Converter.

$4.20
$3.28
$4.20
$3.28
4
Automatic Transmission Fluid 2

Liter. Quart.

Not For Sale
Not For Sale
4
Automatic Transmission Fluid 2

Liter. Quart.

Not For Sale
Not For Sale
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
1
Torque Converter Kit 1

$389.00
$279.60
$389.00
$279.60
1
Torque Converter Kit 1

$389.00
$279.60
$389.00
$279.60
2
Hex Head Header Point Screw

$4.20
$3.28
$4.20
$3.28
2
Hex Head Header Point Screw

.312-24x.44. Flexplate To Torque Converter. .312-24x.44. Driveplate To Torque Cconverter. .312-24x.44. Drive Plate to Torque Converter.

$4.20
$3.28
$4.20
$3.28
2
Hex Head Header Point Screw

.312-24x.44. Flexplate To Torque Converter. .312-24x.44. Driveplate To Torque Cconverter. .312-24x.44. Drive Plate to Torque Converter.

$4.20
$3.28
$4.20
$3.28
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
